Product / Title

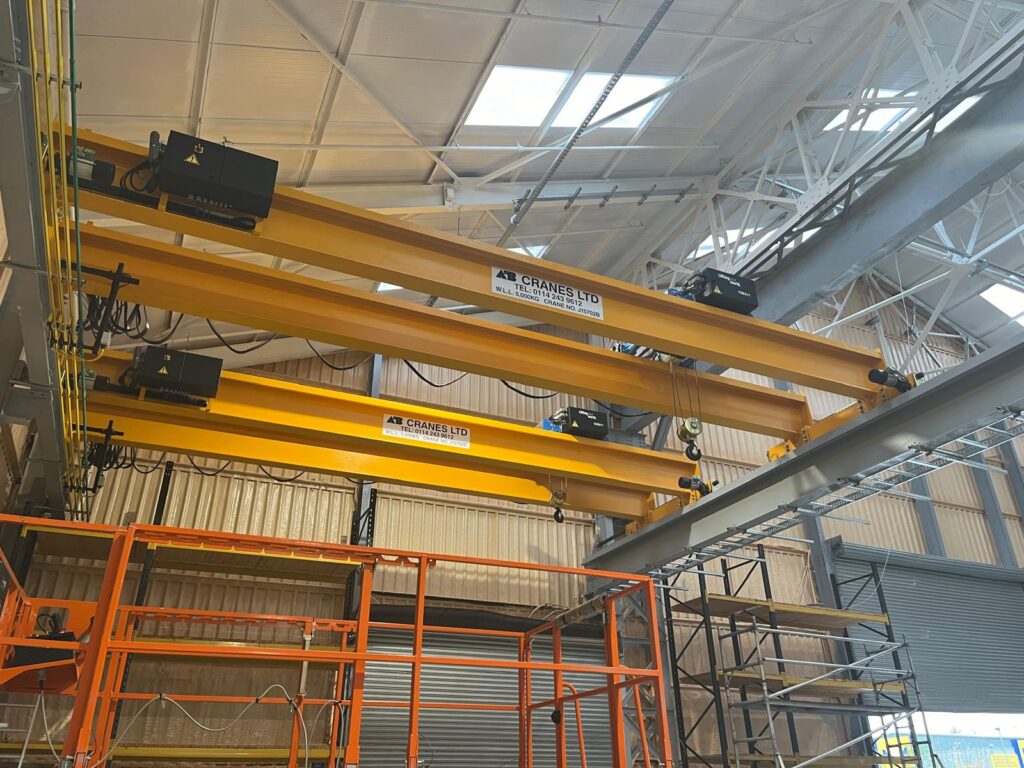

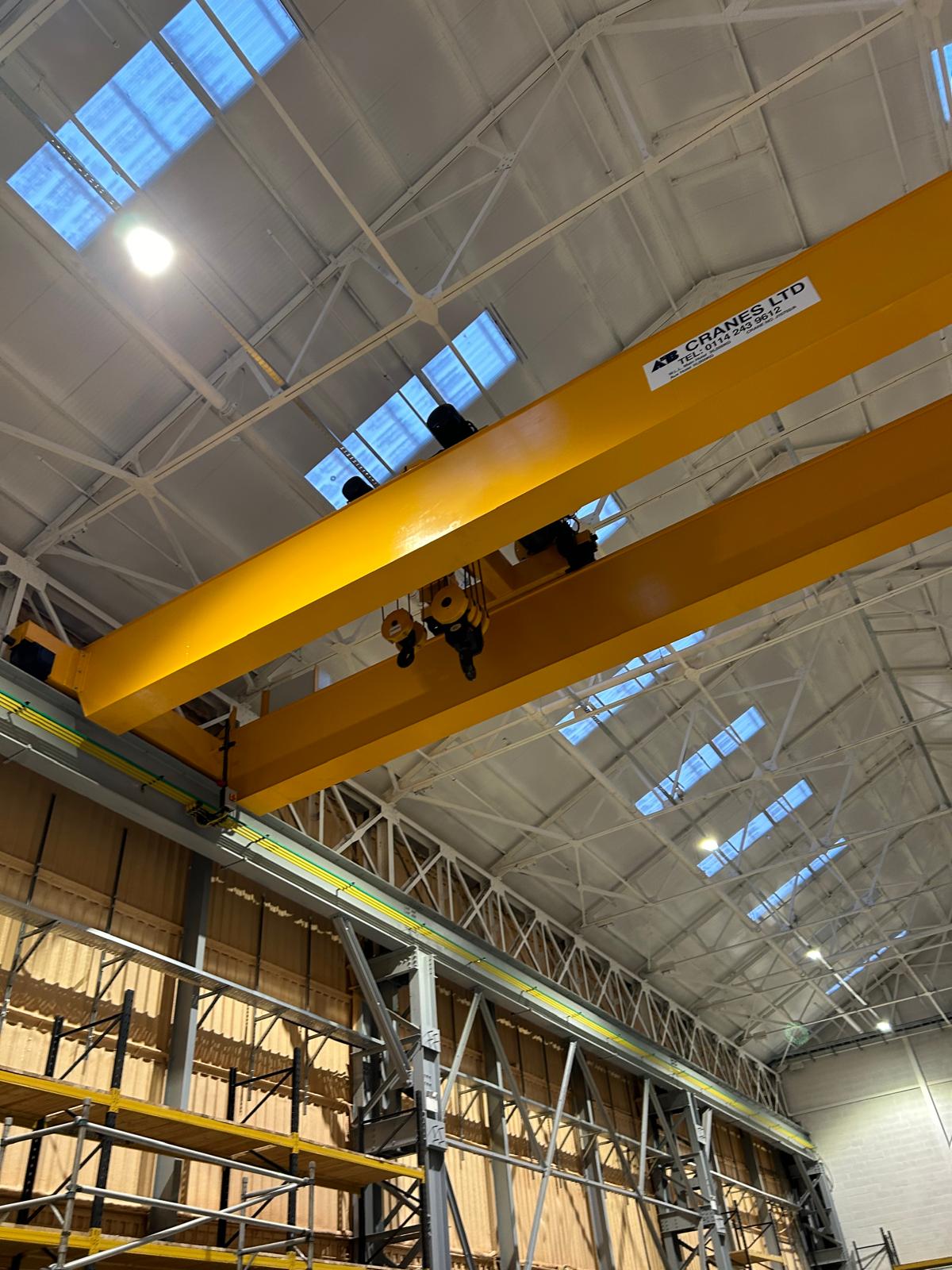

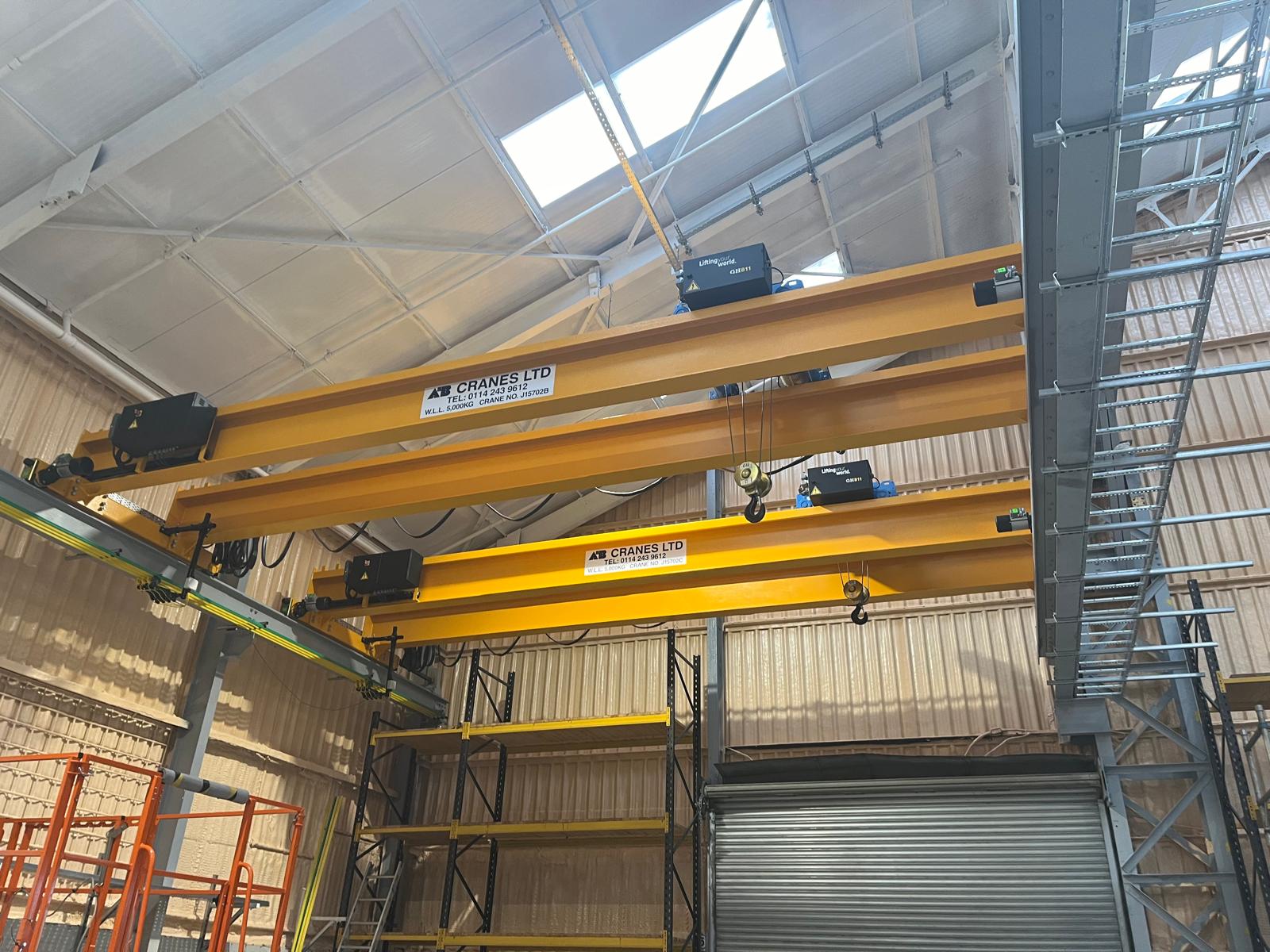

1 x Twin beam 35 Tonne Overhead Crane and Two new Twin bean 5,000 Kg Cranes
Client Name
Riley & Sons
Date
01-11-2024
Client Location
Duration
2 Week installation from start to finish
Workers
Engineers Kevin Donnelly Duain Waite Andy Knowles Richard Lawrence
Job Description

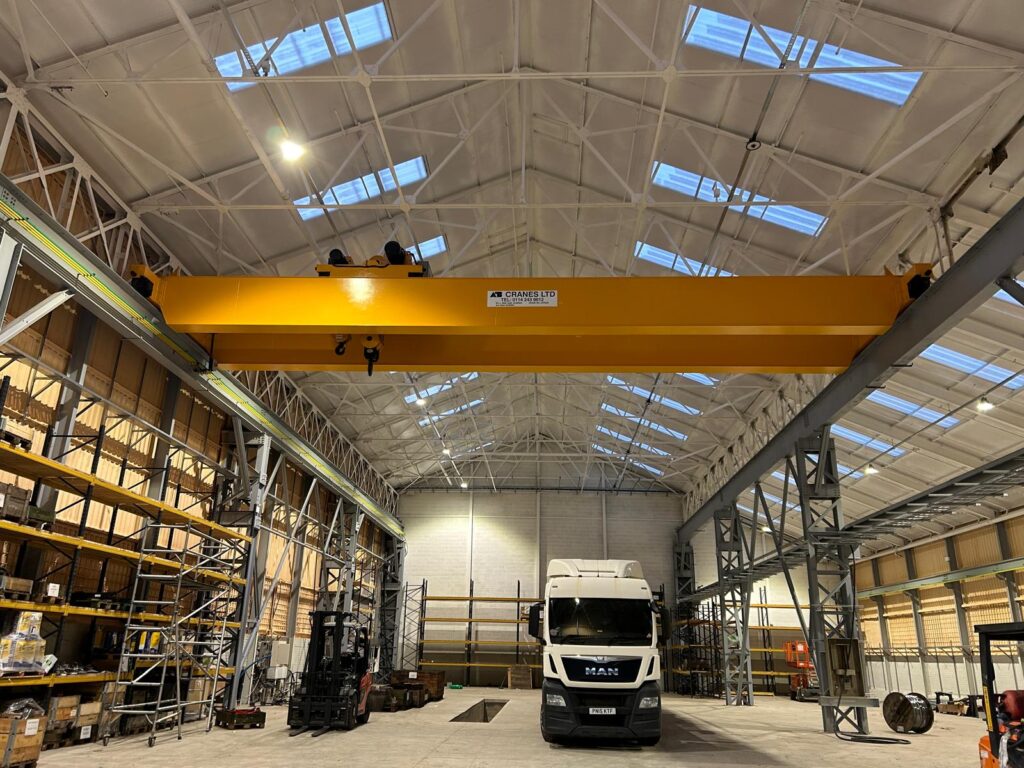

New 35 Tonne Overhead Crane Installed In Riley & Sons New Facility At Bury
Safe working load
35,000 kg (35 Tonne) /5,000 Kg Cranes
Span
35 Ton 17-meter span
5 Ton 9-meter span
Manufacturer
Morris 35 Ton (Now KoneCranes)
GH 5 Ton
Crane Type
Double beam
Height of lift
12 metres
Hoist type
Wire rope Crab units
Hoist speed
Dual
Cross travel
Dual
Long travel
Dual
Control
Pendant
Radio control
Yes
Environment
Indoor normal use
Finish
Yellow gloss to BSOE851
Conductor Systems
The Two bus bar systems that feed the cranes was 50 meters long Each and come complete with mounting brackets and one set of current carrying collectors per Crane. The systems are new four bar finger proof ones.
Dispatch/Delivery/
1-year warranty
Customer Feedback
Very pleased with the entire Job.
We build to customers specific requirements and offer 12 – 24 month warranty on most equipment. They will be Loler certified and tested. All overhead cranes are fully refurbished and meet Loler standards. We know that every installation is unique, and that’s why all our new and used cranes are supplied to meet the customer’s exact specification, and all our reconditioned cranes are LOLER certified and tested.
