Product / Title

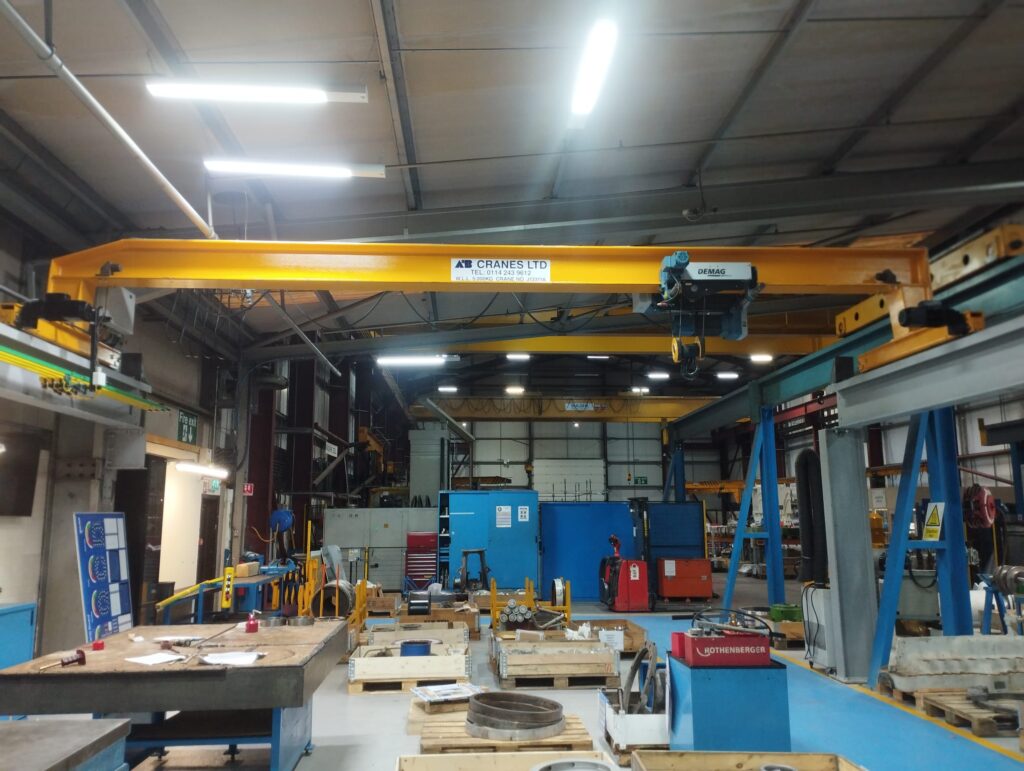

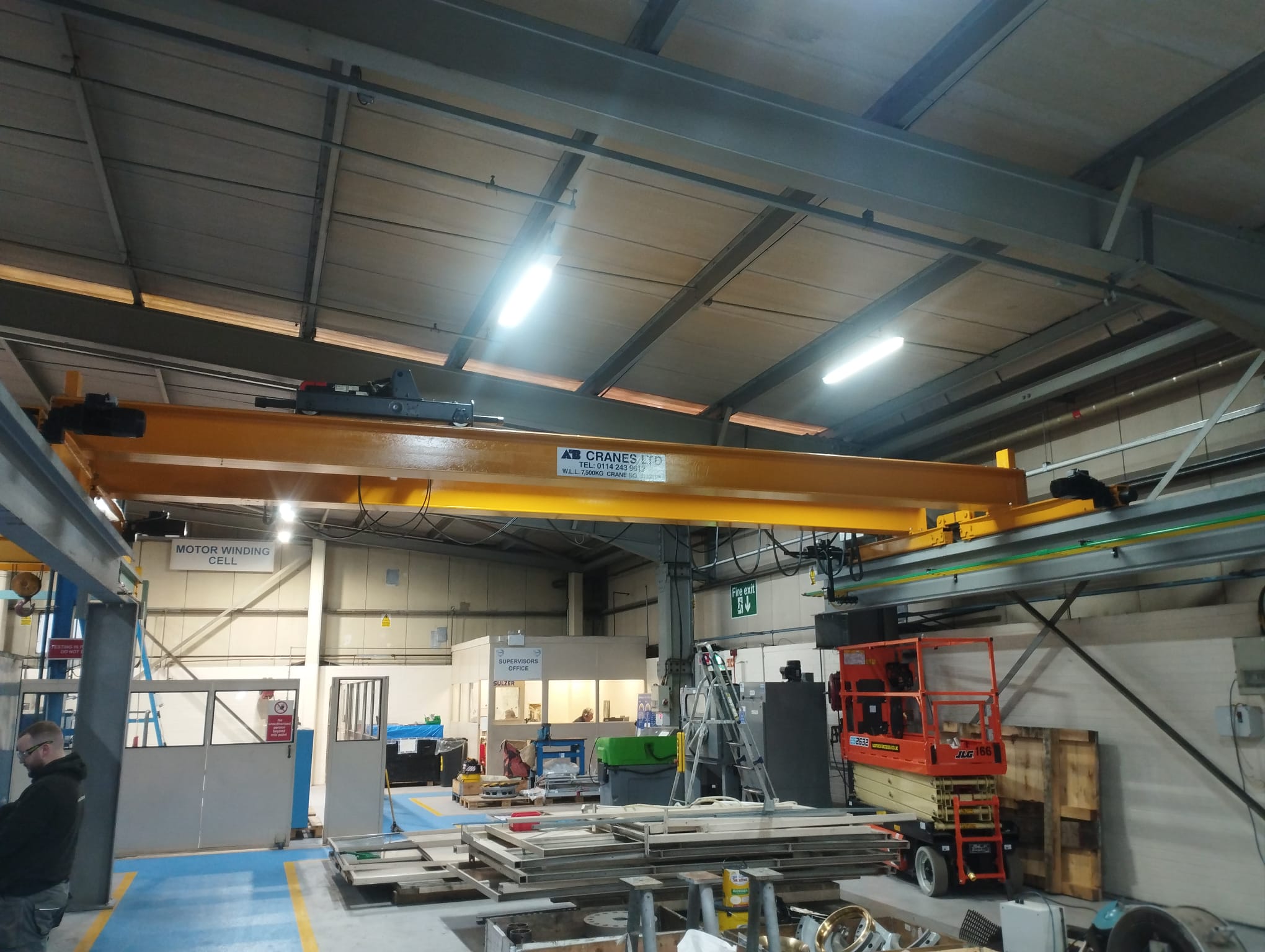

1 x Twin beam Crane and 1 X single beam crane and 1 X Gantry support system
Client Name
Sulzer Pumps Leeds
Date
26-11-2024
Client Location
Leeds
Duration
2 Week installation
Workers
Engineers Jason Murphy, Liam Doran, Andy Knowles
Job Description

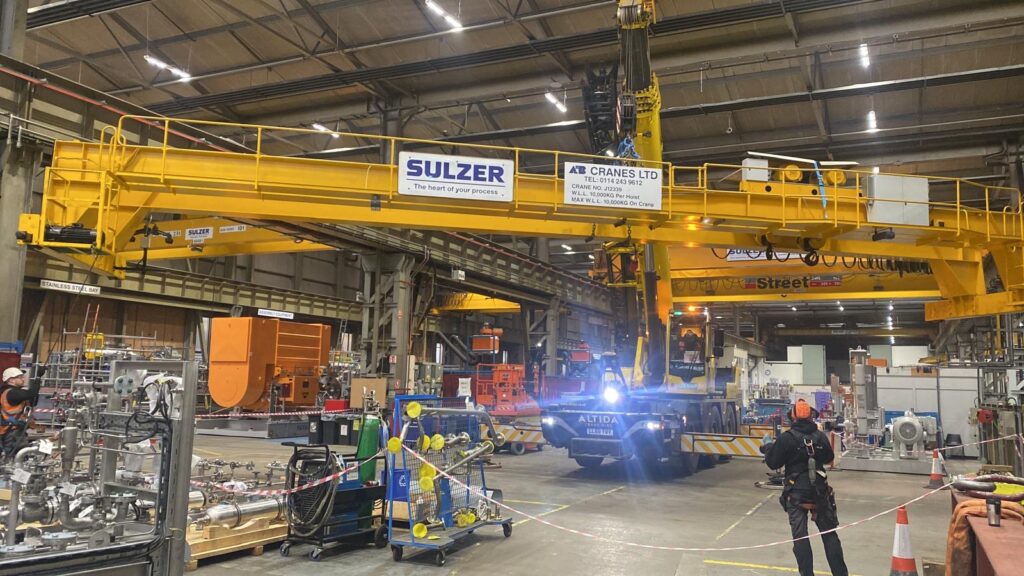

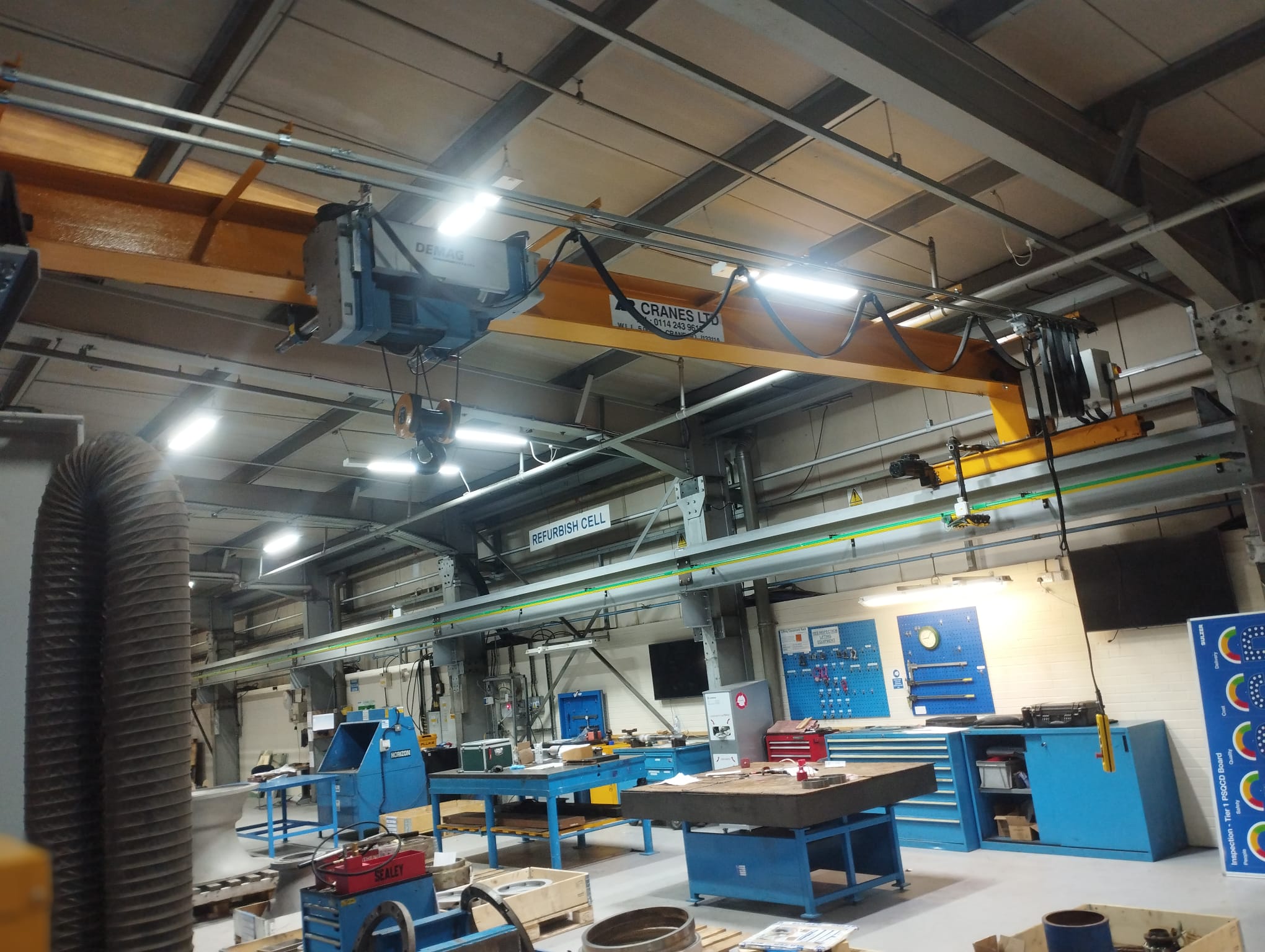

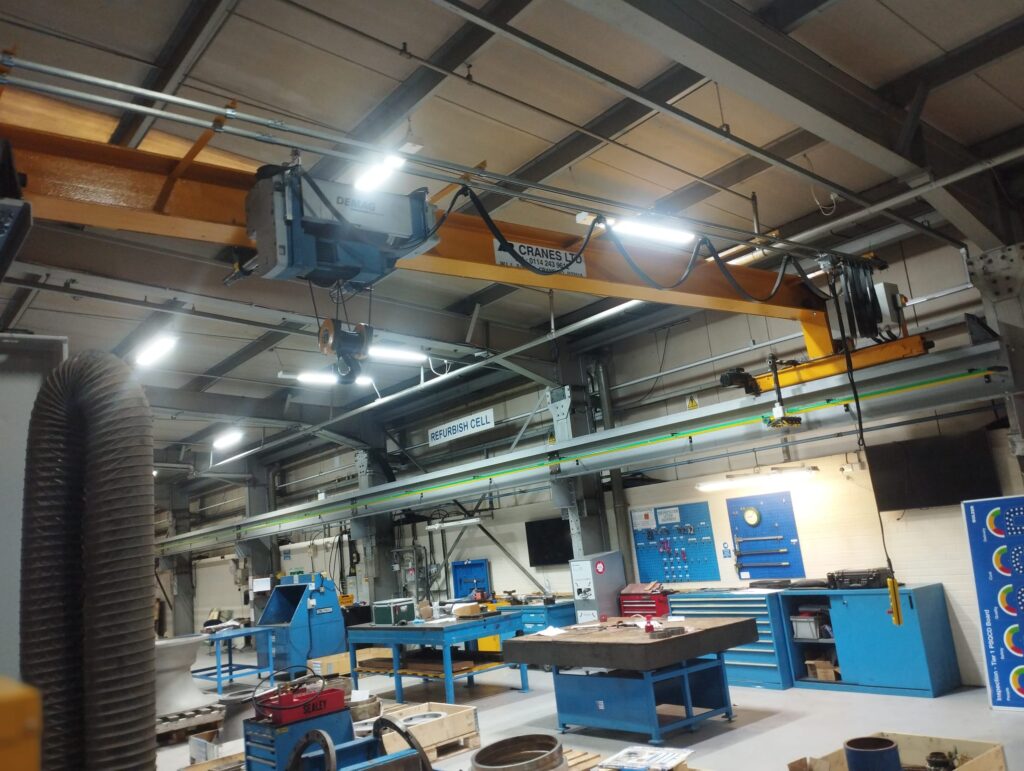

Machine Shop Cranes – Twin beam Crane install
Safe working load
1 X 7500 Kg and 1 X 5,000 Kg Cranes
Span
8 meters
Manufacturer
Demag/Kone
Crane Type
Double beam /single beam
Height of lift
3 metres
Hoist type
Wire rope Crab unit / Close headroom wire rope hoist
Hoist speed
Dual
Cross travel
Dual
Long travel
Dual
Control
Pendant
Radio control
Nil
Environment
Indoor normal use
Finish
Yellow gloss to BSOE851
Steel work

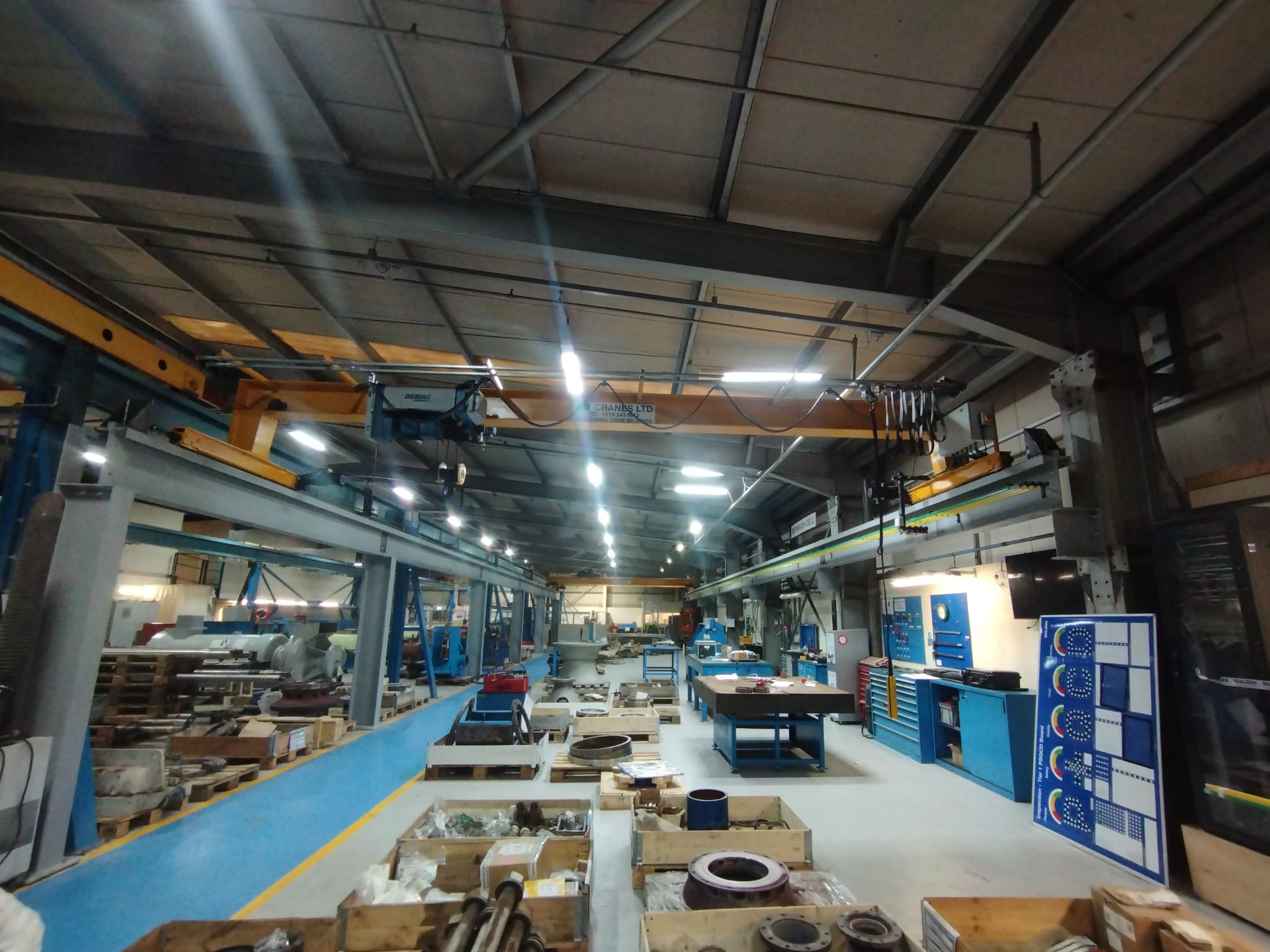

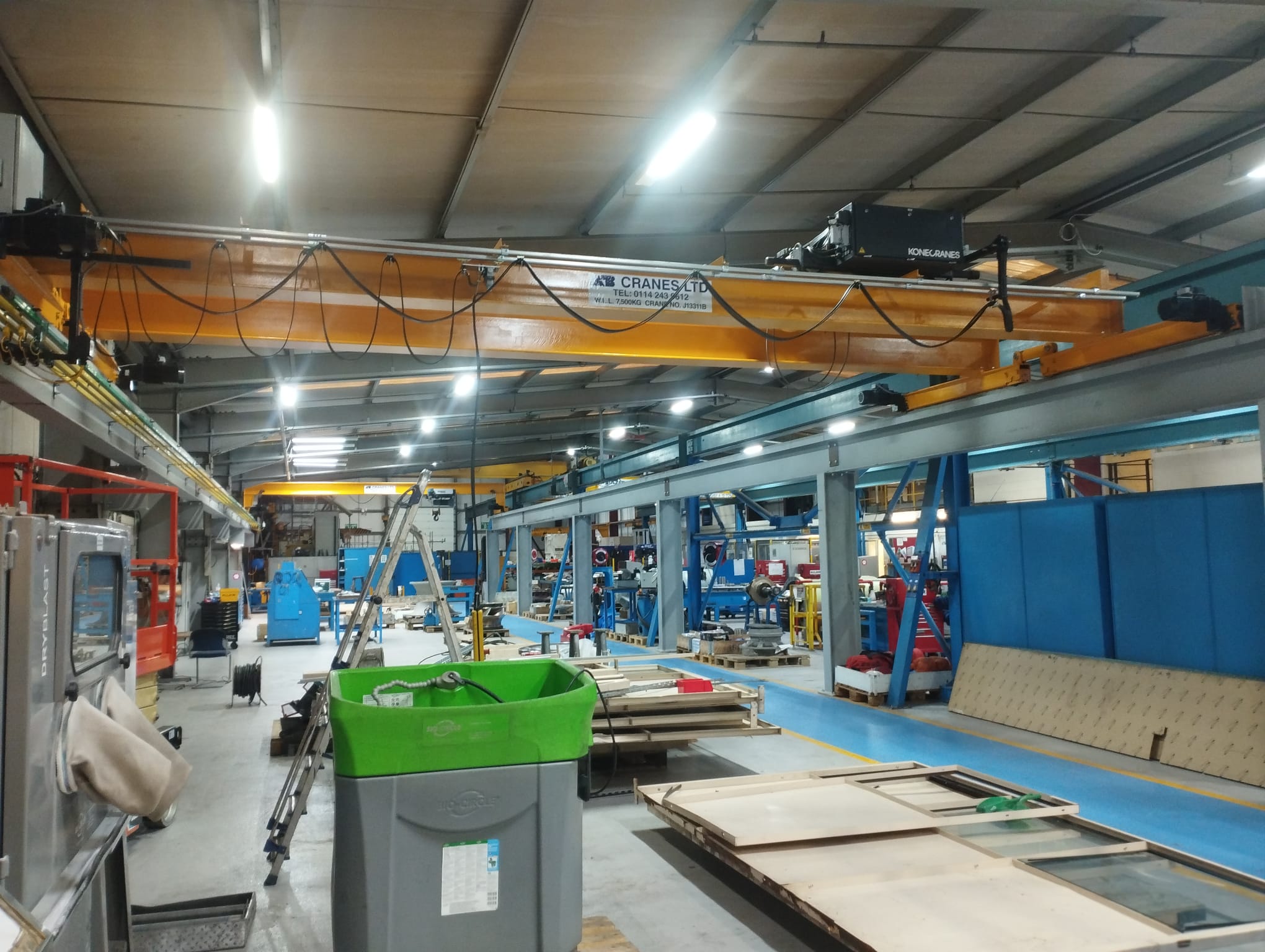

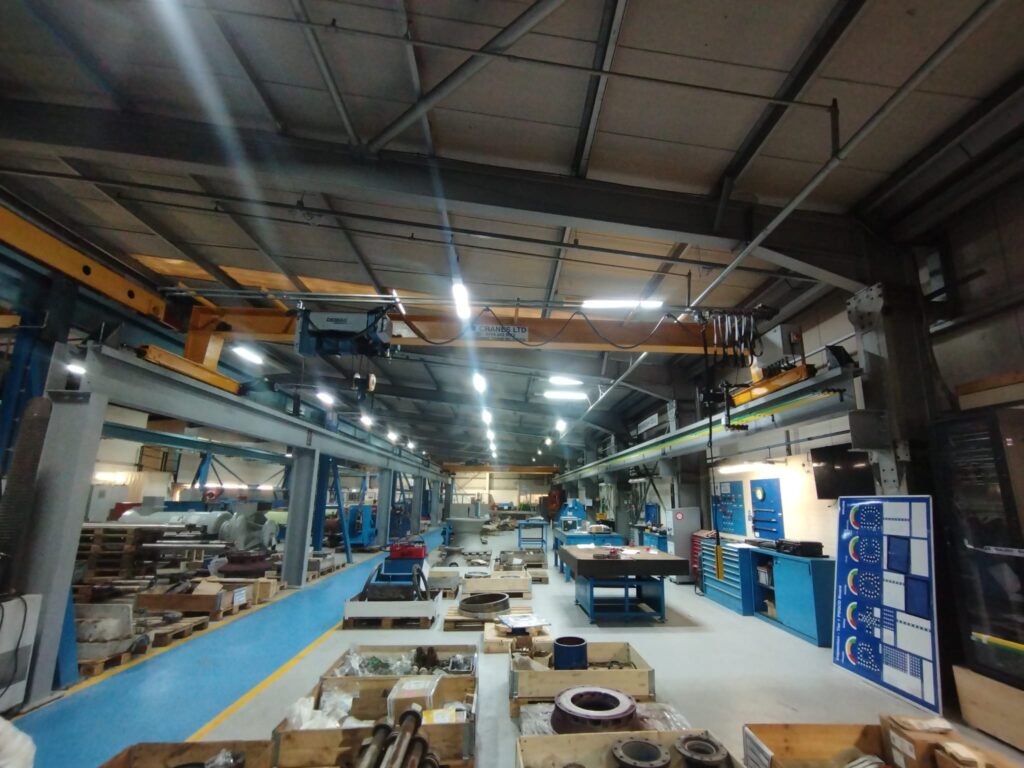

Consisted of 6 of support columns and 6 X support stools also 10 of lengths of crane track giving a total gantry run of 30 meters. The tracks and columns was finished in one coat grey primer and installed onto their prepared foundations.
Conductor System
The bus bar system that feeds the cranes was 30 meters long and come complete with mounting brackets and one set of current carrying collectors. The system is a new four bar finger proof one.
Dispatch/Delivery/
Warranty Method: This cranes were reconditioned and serviced prior to despatch. Was delivered on time, very difficult to install due to being a very tight site. 1-year warranty
Complications/
Solutions Site was very tight so couldn’t use a mobile crane, all equipment was installed with a fork truck
Customer Feedback
Very pleased with the outcome.
